Fork Type Liquid Level Switch
CXYWKG
Selection
Selection

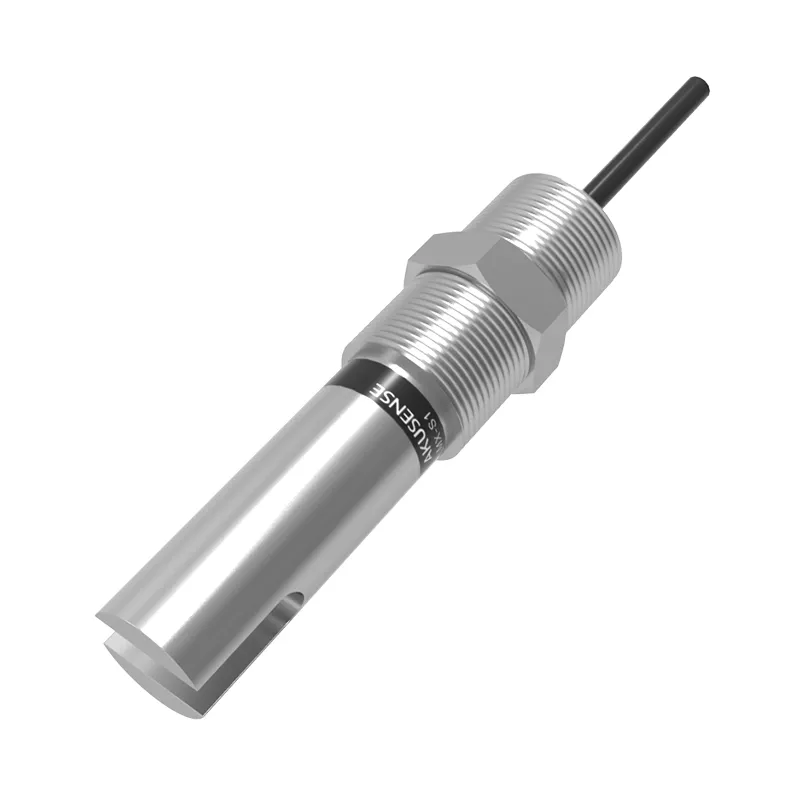

Fork Type Liquid Level Switch
->
Models
MX-S1
Operating Principle
Ultrasonic Detection
Enclosure Shape
Cylindrical
Detection Method
Thru-beam
Mounting method
3/4'NPT STD
Output Mode
Delay output: 1A single pole double throw (NO/NC); 30 V DV
Repeatability
≤2mm
Operating Voltage
5~30VDC
Leakage Current
50 mu A or less
Delay
0.5 s
Ambient pressure
Up to 1000PSI
ProtectiOn Circuit
Reverse protection, instantaneous protection
Working Temperature
-29℃~80℃
Connection Method
Standard 305mm, can be customized according to customer needs
Material
Stainless steel (316L)
