Color Mark、Detection Sensor (ESC Series)
SBJCX
Selection
Selection
Color Mark、Detection Sensor (ESC Series)
->
Models

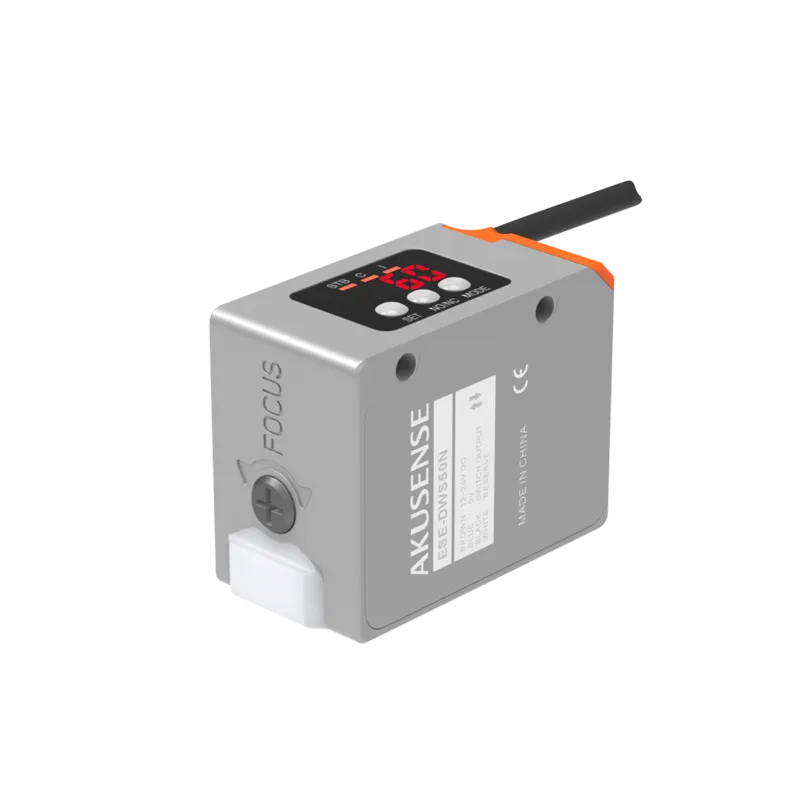

ESE-DWS50P
ESE-DWS50N

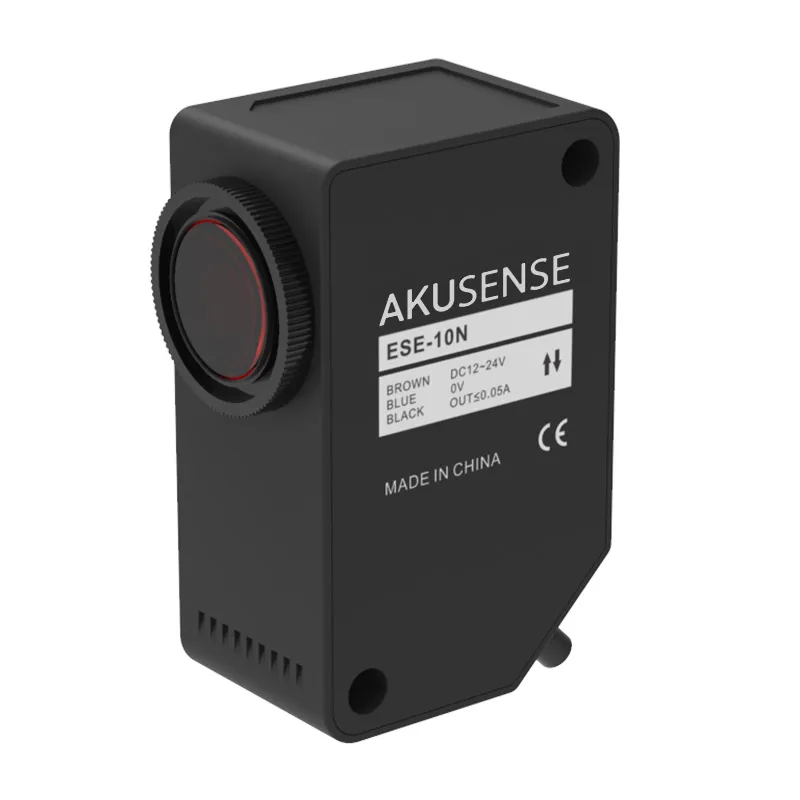

ESE-10N
ESE-10P
Working principle
Photoelectric sensor
Housing style
Square
Optical working principle
Diffuse reflection
Detection Range
30~500mm
10mm(±3mm)
Spot Size
3.6mm
1*6mm(set distance: 10mm)
1x5mm(Distance Setting:10mm)
Light Source
Red/blue/green composite LED (wavelength 625nm/470nm/525nm)
Indicator light
Output status - orange
Sensitivity Adjustment
Button setting
7 sections 8-bit digital display (red: 4 bits, green: 4 bits)
Switch Mode
L.on (light entry action) /D.on (light blocking action) can be switched
L.on(light entry action)/D.on(shading action) can be switched
Output Mode
PNP open collector
NPN open collector
PNP open collector
Response Time
Mark mode 1.6ms, color mode 0.2ms
Color code mode 0.05ms, color mode 0.2ms
Color mark mode: 0.5ms; color mode: 2ms
Switching frequency
≤6kHz
Repeatability
<0.5%
5%SN
Hysteresis
-
5%
Operating Voltage
12~24V DC±10%
Current consumed
≤60mA(24V DC)
≤35mA(24V DC)
Residual Voltage
＜1V
< 1.5V (load current < 50mA)
<1.5V(load current<50mA)
Load Current
≤100mA
< 50mA
<50mA
Insulation Resistance
≥20MΩ (250VDC) between power terminal and housing
Withstand Voltage
1000VAC (50/60Hz), 1 minute between the power terminal and housing
ProtectiOn Circuit
Power supply reverse polarity protection/surge protection/short circuit protection
Operating temperature
-10~55℃(without freezing)
Storage Temperature
-20~+70℃(without freezing)
Operating humidity
35%~85%RH(No Condensation)
35 to 95%RH (no condensation)
Storage Humidity
35 to 95%RH (no condensation)
35~85%RH (no condensation)
Ambient light
Incandescent lamp ≤20,000 Lux; Sunlight exposure ≤ 30,000 Lux
Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux
Vibration Resistance
10~50Hz, double amplitude 1.5mm, 2 hours in each direction X, Y and Z
10~50Hz,1.5mm amplitude,2 hours each in the X,Y,and Z directions
Protection rating
IP66
IP67
Maximum Tightening Torque
0.5 Nm or less
Connection Method
2M/4-wire cable
2M/ 3-core cable 4mm diameter
Dimensions
49.6x35.2x25.7mm
57*35*24mm
Material
Aluminium
PC
Weight
86g
0.05 kg
Accessories
Mounting screws
Detection Method
Diffuse Reflection
Diffuse Reflection
Detection Distance
30~500mm
10mm±3mm
Projection Element
Red /Blue/green composite LED(projective wave peak wavelength:625nm/470nm/525nm)
Red /Blue/green composite LED(projective wave peak wavelength:625nm/470nm/525nm)
Indicator
Action Indicator: Yellow LED
Output indicator: Red; Power LED: Green
Digital Screen
4-digit digital tube display
4-digit digital tube display
Working Voltage
12~24V DC±10%
12~24V DC±10%
Current Consumption
60mA
<35mA(24V)
Ambient Illuminance
Incandescent lamp ≤20,000 Lux; Sunlight exposure ≤ 30,000 Lux
Incandescent lamp irradiation≤3000 Lux
Ambient Temperature
-25℃~+55℃,no freezing; When Storing: -30~+70℃
When working:-10℃~＋55℃,no freezing; no condensation; When storing:-20℃~+70℃
Ambient Humidity
When working:35%~85%RH,no condensation; When storing:35%~95%RH
When working:35~85%RH,When storing:35~85%RH
Group Pulse
±2000V
Static Electricity
±8000V
Insulation Withstand Voltage
±1000V 50/60Hz 60s
±1000V 50/60Hz 60s
Circuit Protection
Reverse polarity protection/short circuit protection/surge protection
Reverse polarity protection,short circuit protection
Protection Degree
IP66
IP67
Delay Function
1ms~9999ms
Accessary
Screw
