Thin Type (ESL Series)
CBX
Models

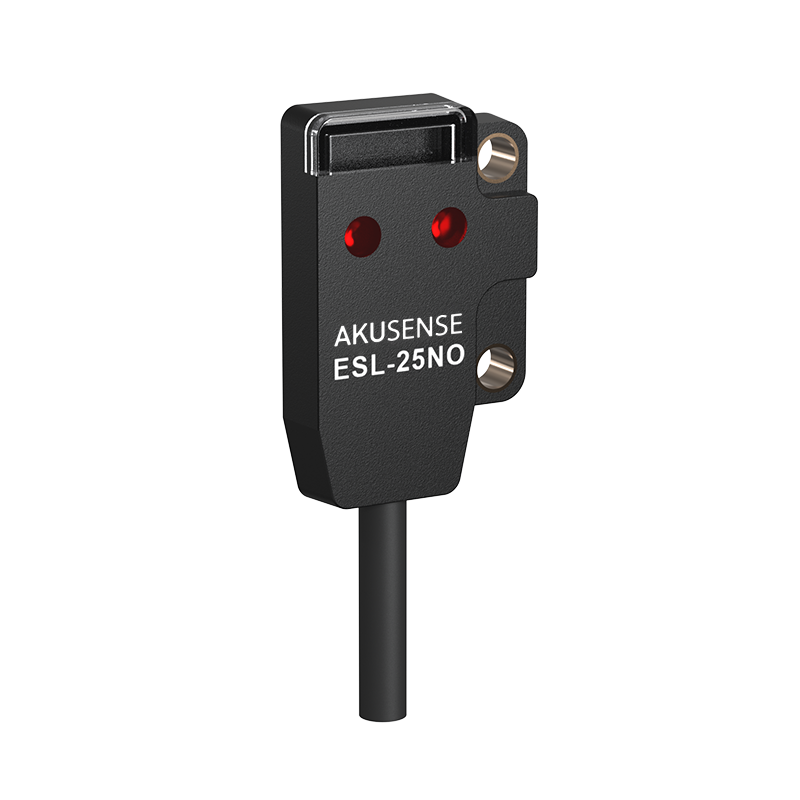

Thin Type ESL-25NC
- Detection Range：White paper :1 to 25mm
- Detection Method：
- Detection Distance：
- Output Mode：NPN open collector
- Repeatability：<5%
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | ESL-25NC |
| Working principle | Photoelectric sensor |
| Housing style | Flat square |
| Optical working principle | Diffuse reflection |
| Detection Range | White paper :1 to 25mm |
| Spot Size | Not applicable (infrared light) |
| Detected Object | φ1.5mm opaque object (at 10mm) |
| Light Source | Infrared LED 860nm(modulated) |
| Indicator light | Output indicator: orange; Light source indicator: green |
| Sensitivity Adjustment | None |
| Switch Mode | L.on (into light action) |
| Output Mode | NPN open collector |
| Response Time | ≤2ms |
| Switching frequency | 250Hz |
| Repeatability | <5% |
| Hysteresis | ＜15%Sr |
| Operating Voltage | 10~30V DC±10% |
| Current consumed | ≤20mA |
| Residual Voltage | <1.5V (load current ≤50mA) |
| Load Current | ≤50mA (30VDC) |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Withstand Voltage | 500VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -25~55℃(without freezing) |
| Storage Temperature | -30~+60℃(no freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10~50Hz sweep frequency, 1.5mm amplitude, 2 hours each in X, Y, and Z directions |
| Protection rating | IP65 |
| Maximum Tightening Torque | 0.2N·m |
| Connection Method | T_SUB_PPBOMENTRY |
| Dimensions | 13.25 x20.5 x3.5 mm |
| Material | PC |
| Weight | 0.022 kg |
| Accessories | Mounting screws |
