TOF Principle Type (ELT Series)
TOFX
Models

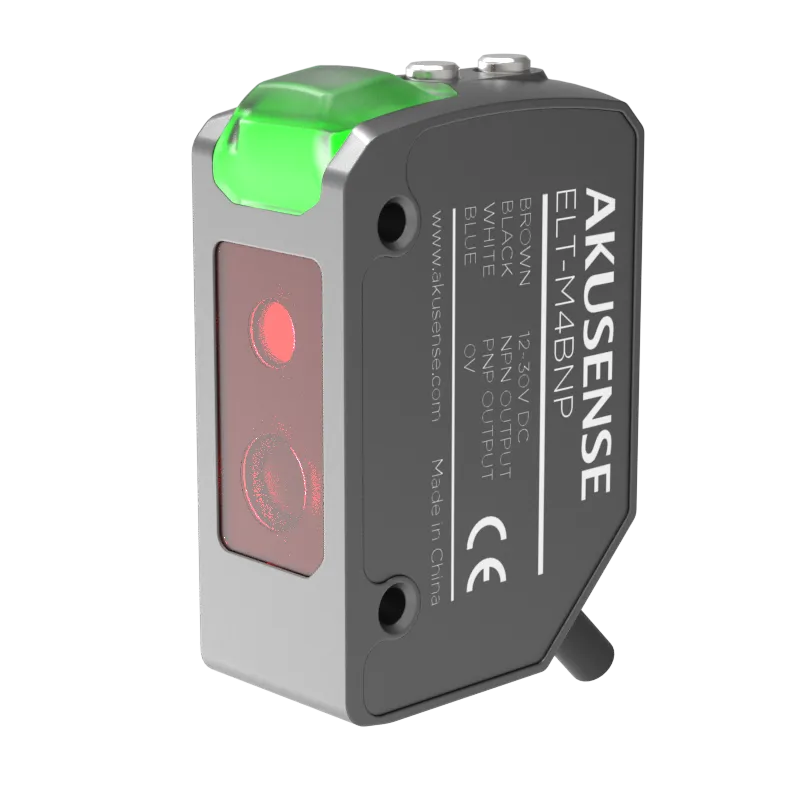

TOF Principle Type ELT-M4B4
- Detection Range：0.05~4m
- Output Mode：RS485
- Response Time ：1ms
- Light Source：Laser diode 650nm, Class 2
- Insulation Resistance：≥50MΩ(500VDC)
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | ELT-M4B4 |
| Working principle | TOF principle |
| Housing style | Square |
| Optical working principle | TOF(Time of Flight） |
| Detection Range | 0.05~4m |
| Spot Size | ø6mm/2.0m |
| Light Source | Laser diode 650nm, Class 2 |
| Indicator light | Output Indicator Light: Orange Power Indicator Light: Green |
| Switch Mode | NC/NO switchable |
| Output Mode | RS485 |
| Response Time | 1ms |
| Switching frequency | 0.5kHz |
| Repeatability | ±5mm |
| Operating Voltage | 9~30VDC |
| Current consumed | ≤100mA |
| Residual Voltage | ＜1V |
| Load Current | ≤100mA |
| Insulation Resistance | ≥50MΩ(500VDC) |
| Withstand Voltage | ±500V 50/60Hz 60s |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -20℃~+55℃(No Freezing) |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity | 35%~85%RH(No Condensation) |
| Storage Humidity | 35~95%RH |
| Ambient light | Incandescent lamp ≤5000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP67 |
| Connection Method | 2M/4-wire cable |
| Dimensions | 43.3x29.5x15.5mm |
| Material | Housing: PC+ABS; Lens: PMMA |
| Weight | 90g |
| Detected Object | ≥φ5mm opaque object |
| Sensitivity Adjustment | Button setting |
| Maximum Tightening Torque | 0.5N·m |
