Square Type(PTE、PTEW、PTV、PTVW、PTN、PTJ-I Series)
TYFX
Models

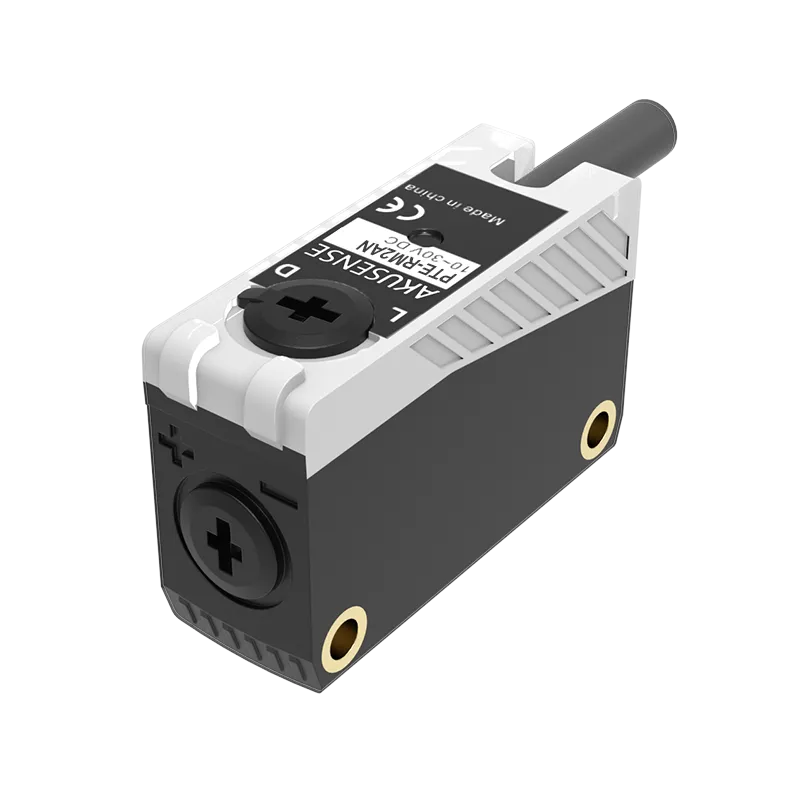

Square Type PTE-RM2AP
- Detection Range：2m
- Output Mode：PNP open collector
- Repeatability：
- Response Time ：≤1ms
- Light Source：Red LED 660nm (modulated)
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | PTE-RM2AP |
| Working principle | Photoelectric sensor |
| Housing style | Square |
| Optical working principle | Regression reflex |
| Spot Size | At 2m: 4cm x 4cm |
| Light Source | Red LED 660nm (modulated) |
| Indicator light | Working indicator light: green; Action light: red |
| Sensitivity Adjustment | Single-turn potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Response Time | ≤1ms |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤21mA |
| ProtectiOn Circuit | Reverse polarity protection/surge protection/short circuit protection |
| Operating temperature | -25~55℃(without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Protection rating | IP67 |
| Connection Method | 2M/ 3-core cable 4mm diameter |
| Material | PBT |
| Accessories | Screwdriver, bracket, screws and nuts |
| Detection Range | 2m |
| Output Mode | PNP open collector |
| Switching frequency | 500Hz |
| Residual Voltage | < 1.5V (load current ≤100mA) |
| Load Current | ≤100mA |
| Storage Temperature | -30~+70℃ |
| Storage Humidity | 35~95%RH |
| Maximum Tightening Torque | 0.5 Nm or less |
| Dimensions | 20.0 x31.0 x11.0 mm |
| Weight | 0.050 kg |
| Detected Object | 18mm |
