Cylindrical Type (PM、PSM、PXM Series)
YZX
Models

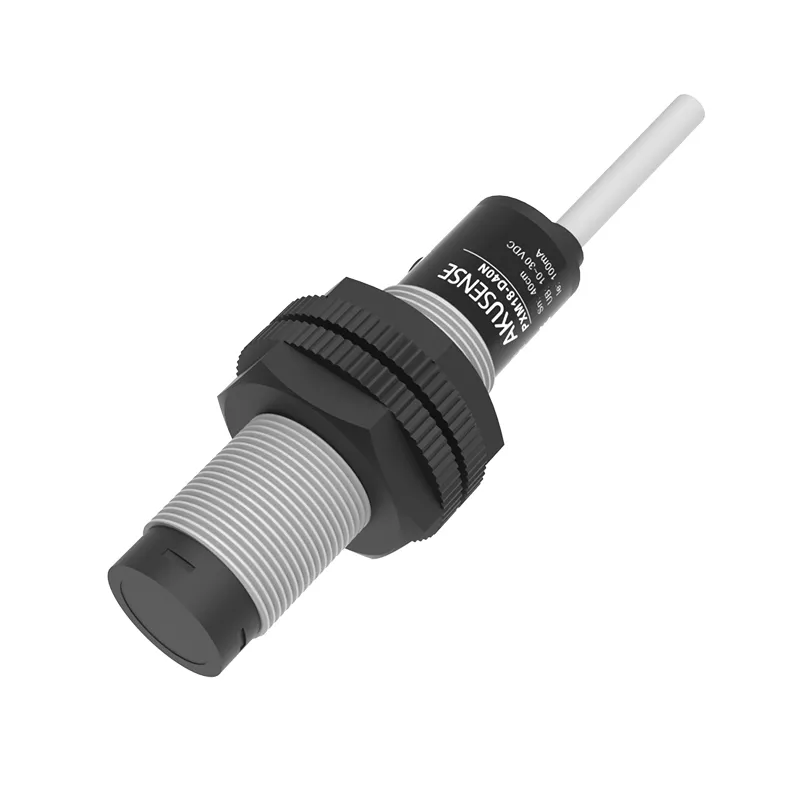

Cylindrical Type PXM18-D10P
- Detection Range：100mm
- Output Mode：PNP open collector
- Repeatability：5%
- Response Time ：20ms
- Light Source：Red LED 660nm
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | PXM18-D10P |
| Working principle | Photoelectric sensor |
| Housing style | Cylinder Shape |
| Optical working principle | Diffuse reflection |
| Detection Range | 100mm |
| Spot Size | Ø 8.0 mm / 0.10 m |
| Light Source | Red LED 660nm |
| Indicator light | Power status: Green LED, running status: red LED |
| Sensitivity Adjustment | Multi-turn potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode | PNP open collector |
| Response Time | 20ms |
| Switching frequency | 0.1 kHz |
| Repeatability | 5% |
| Hysteresis | ≤10% |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤30mA |
| Residual Voltage | ≤2V (100mA) |
| Load Current | ≤100mA (30VDC) |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/output short circuit protection/pulse overvoltage protection |
| Operating temperature | -25~70℃(without freezing) |
| Storage Temperature | -30~80℃(without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux; LED lights ≤1000 Lux |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Protection rating | IP67 |
| Maximum Tightening Torque | 1Nm |
| Connection Method | 2M/ 4-core cable |
| Dimensions | M18X68mm |
| Material | Shell: PBT, lens: PC |
| Weight | 0.091/0.050 kg |
| Accessories | Nut M18x1 |
