Magnetic Sensor
CXCX
Models

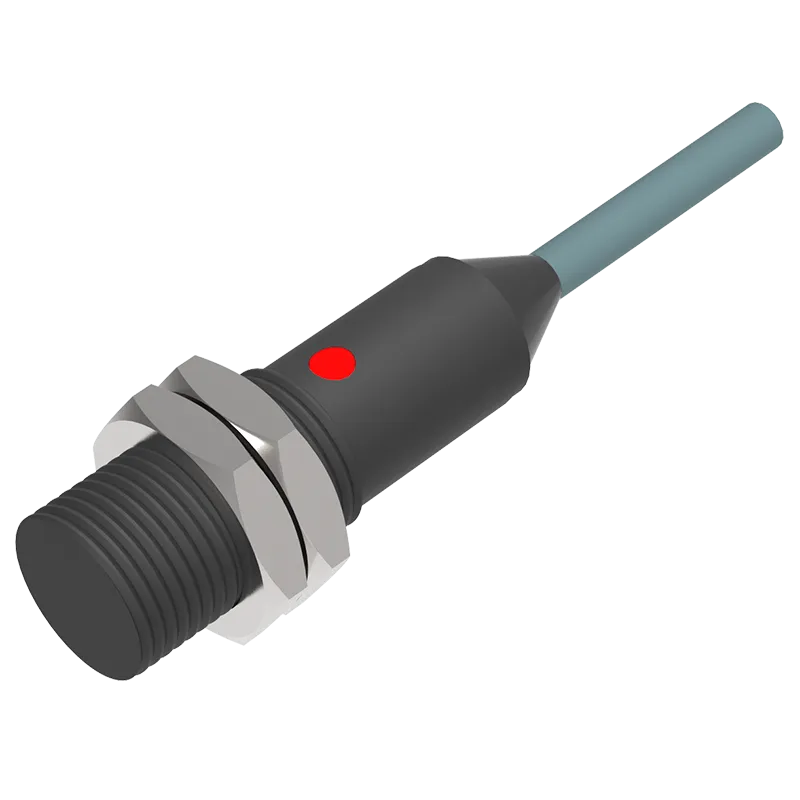

Magnetic sensor MR-P24-N
- Detection Distance：
- Output Mode：NPN normally open (N.O.) (ON when approaching)
- Response Time ：
- Connection Method：1M/3 core cable
- Magnetic Sensitivity：MR-P24-S: 2.5~3.5mT, MR-P24-N: 0.9±0.2mT
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | MR-P24-N |
| Operating Principle | Magnetic |
| Shell Style | Cylindrical type |
| Detection Range* | MR-M10L: 8mm; MR-M9K: 11mm |
| Detect magnetic poles | N-pole |
| Magnetic Sensitivity | MR-P24-S: 2.5~3.5mT, MR-P24-N: 0.9±0.2mT |
| Output Mode | NPN normally open (N.O.) (ON when approaching) |
| Operating Voltage | 5~24V DC |
| Output Current | ≤12mA |
| Power Consumption | ≤12mA |
| Response Speed | 5μs |
| Operating Frequency | 30Hz |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP67 |
| Mounting method | M9 Secure with a fixed screw with 0.5N·m or less torque |
| Connection Method | 1M/3 core cable |
| Dimensions | M9x25mm |
| Material | GF reinforced PBT: black; MR-P24-S wire gray, MR-P24-N wire black |
| Weight | about21g |
| Indicator light | red |
