Linear Sensor
XXCGQ
Models

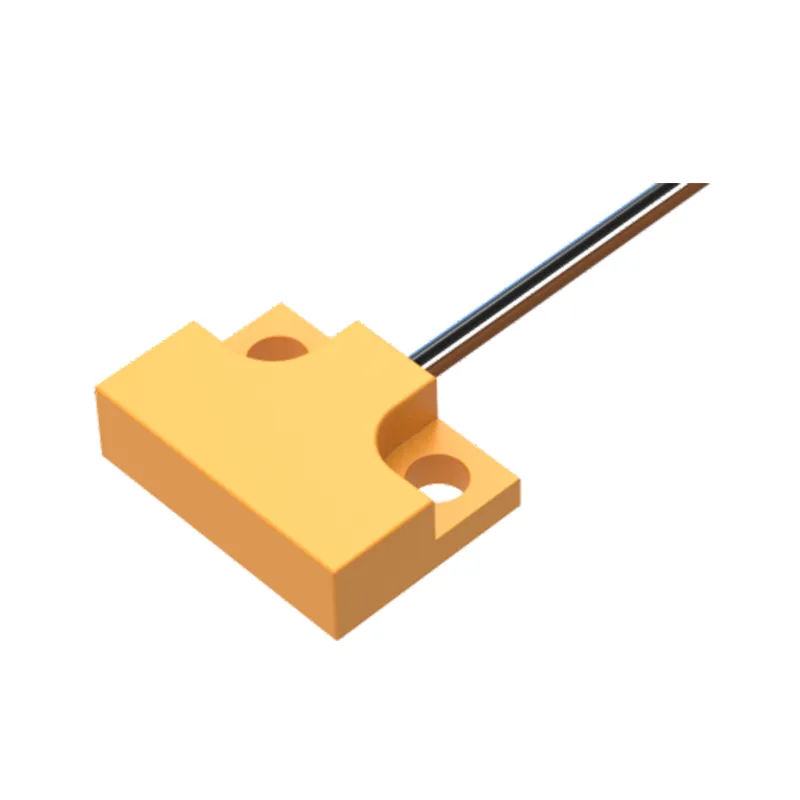

Linear sensor MR-L4
- Connection Method：M2 screw mounting torque 0.15N·m
- Magnetic Sensitivity：65mV/mT(center value)
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | MR-L4 |
| Operating Principle | Linear sensor |
| Shell Style | Square |
| Magnetic Sensitivity | 65mV/mT(center value) |
| Magnetic sensitivity Temperature coefficient | 0 ℃ plus or minus 0.04% |
| Center voltage Temperature Coefficient | 0 + / - 0.5 mV / ℃ |
| Operating Voltage | 5V DC |
| Output Voltage | 0.3→4.7V (-40→+40mT) : (central value) |
| Center Voltage | 2.5 V + / - 0.15 V |
| Output Current | ≤±12mA |
| Power Consumption | 12mA |
| Response Speed | 5us(100kHz) |
| Operating temperature | -20℃~+85℃(no condensation) |
| Operating humidity | 20~95%RH |
| Protection level | IP65 |
| Connection Method | M2 screw mounting torque 0.15N·m |
| Dimensions | 8.6x12x3.5mm |
| Material | GF Reinforced PBT(orange) |
| Weight | 2g |
