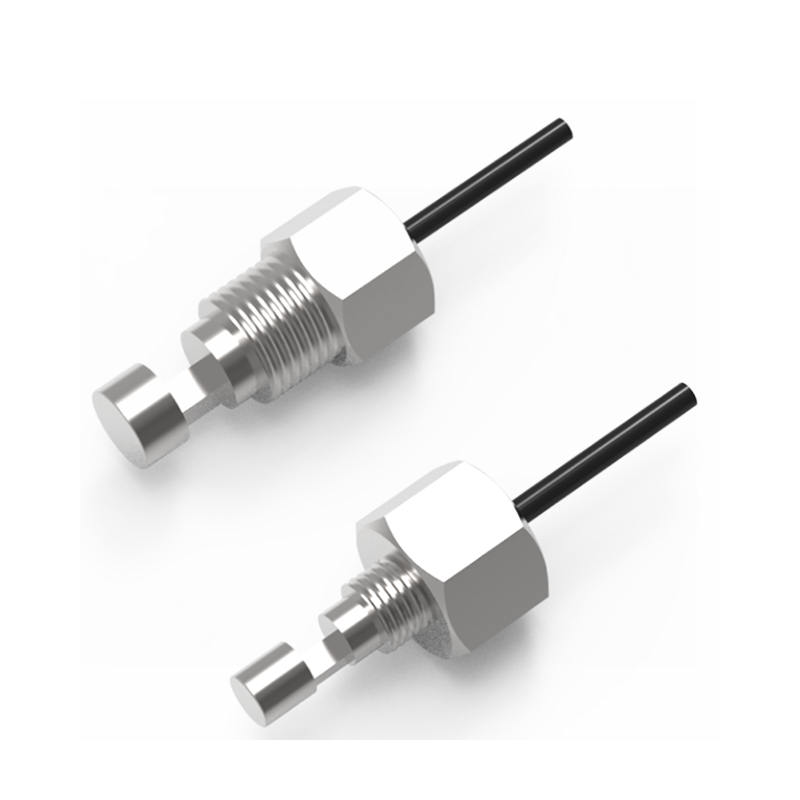

Solid Level Switch(MDJ Series)
GTYWKG
Selection
Selection
Solid Level Switch(MDJ Series)
->
Models

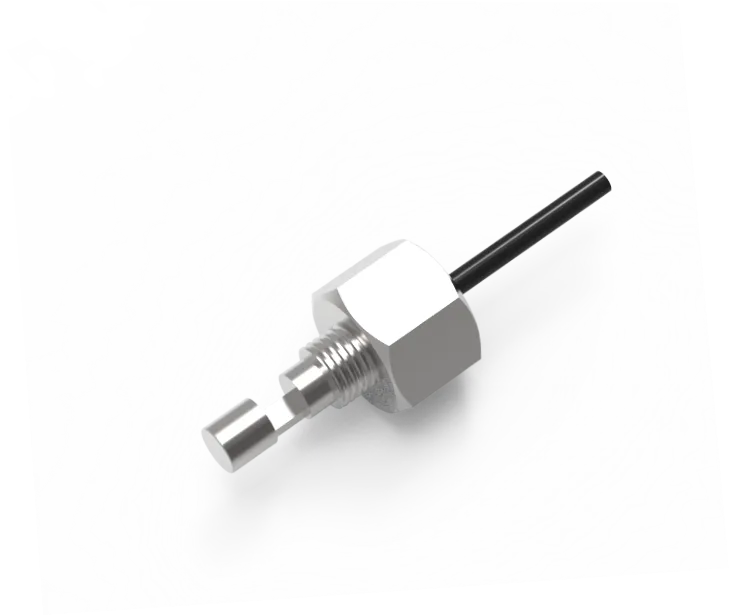

MDJ-C02-1 4

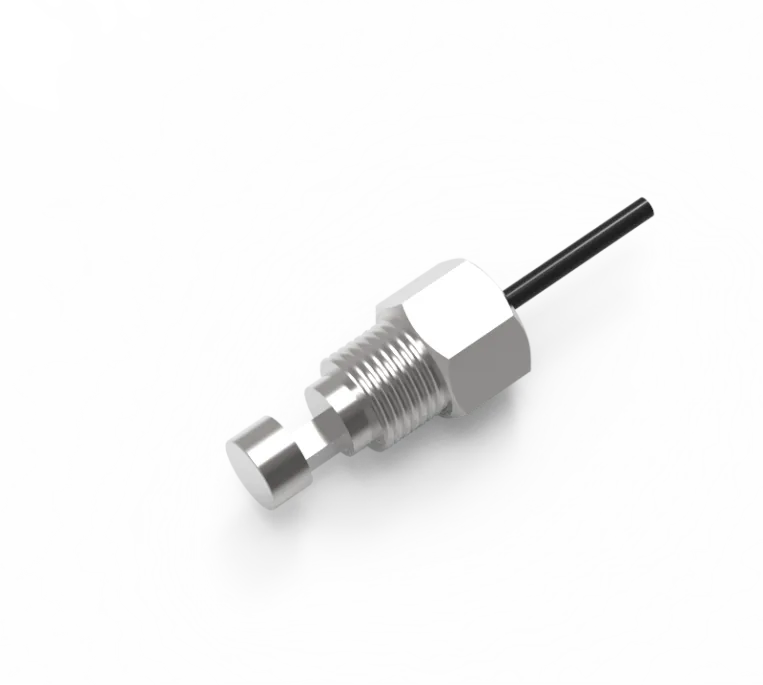

MDJ-C02-1 2
Operating Principle
Solid State Level Switch
Enclosure Shape
Cylindrical
Detection Method
Thru-beam
Mounting method
1/4”NPT
1/2"NPT
Output Mode
Relay output: 0.5A single pole single throw (NO)
Repeatability
≤2mm
Operating Voltage
5~30VDC
Leakage Current
50 mu A or less
Delay
0.5 s
Ambient pressure
250PSI, custom developed 500/1000PSI products
ProtectiOn Circuit
Transient voltage and polarity invert
Working Temperature
-29℃~80℃
Connection Method
12 inches (305mm)
Material
Stainless steel (316L)
