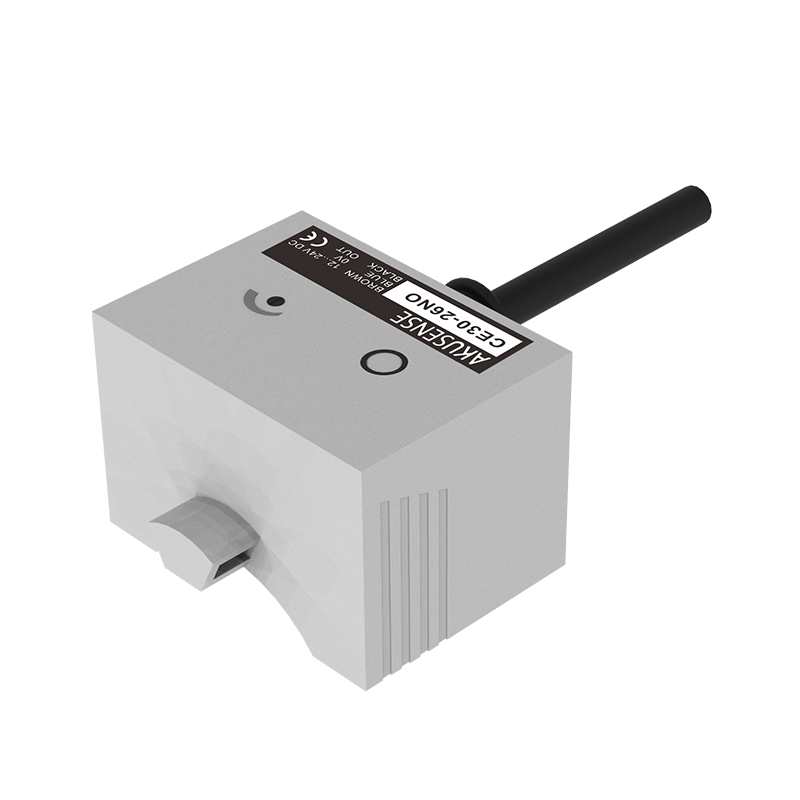

Liquid Level Detection
GDYWJC
Models

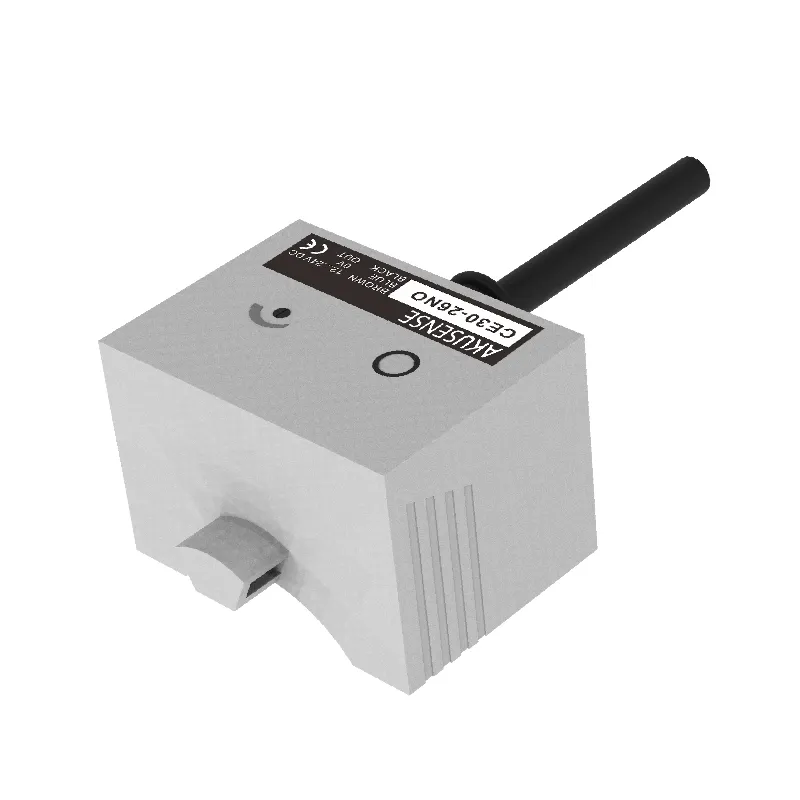

Liquid Level Detection CE30-26PC
- Output Mode：PNP
- Repeatability：±0.2mm or less
- Indicator：Output indication: Red LED
- Insulation Resistance：≥50MΩ (500VDC)
- Installation Method：
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | CE30-26PC |
| Working principle | Capacitive sensor |
| Housing | square |
| Installation type | Cable tie to liquid shell under test |
| Sensing distance | Sensing distance is adjustable (depending on the measured liquid) |
| Detect pipe size | φ12~φ26mm |
| Detects pipe wall thickness | 1.5mm and below |
| Detected objects | Non-metal piping (liquid) |
| Indicator | Output indication: Red LED |
| Sensing range adjustment | Multi-turn potentiometer with adjustable sensing distance |
| Switching output | Normally closed |
| Output Mode | PNP |
| Repeatability | ±0.2mm or less |
| Hysteresis | 0.3 ~ 3 mm |
| Operating Voltage | 10~30V DC |
| Current Consumption | ≤10mA |
| Residual Voltage | 1.5 V or less |
| Load Current | ≤100mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) |
| Dielectric strength | AC 500V for 1 minute < 0.1mA |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Power supply reverse polarity protection, surge protection, short circuit protection |
| Operating temperature | 0~55℃ |
| Operating humidity | 25~85%RH |
| Enclosure rating | IP67 |
| Connection type | 2m PVC cable |
| Dimension | 36.06*33.49*22.4mm |
| Material | ABS |
| Weight | 0.047kg |
| Accessories | Cable tie, metal screwdriver, PVC hose |
