Temperature Resistance Type (TG、TZ Series)
NWDX
Models

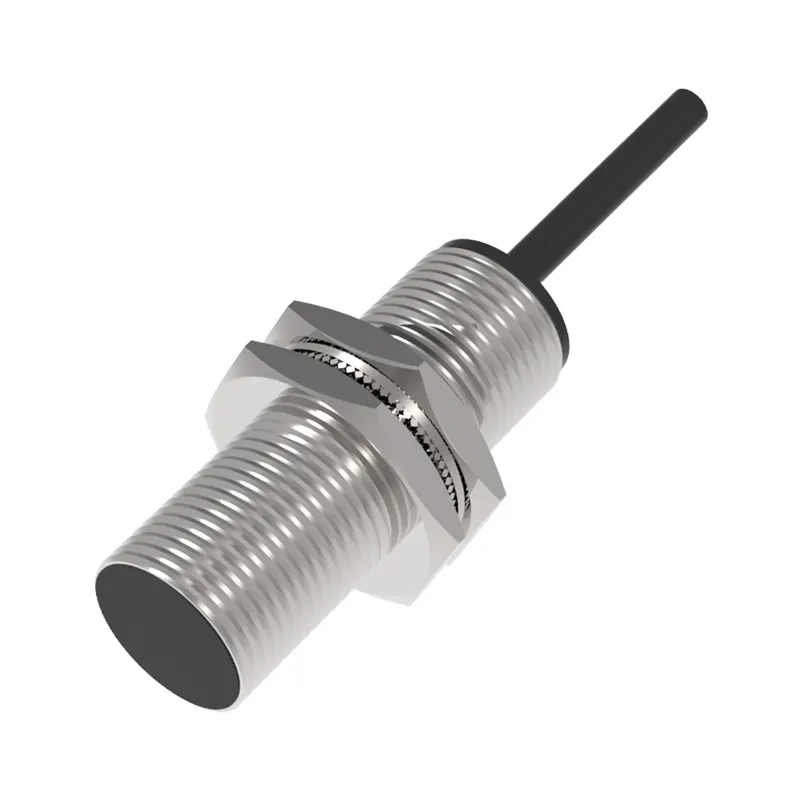

Temperature Resistance Type TGF18-05NO2
- Size：
- Output Mode：NPN
- Repeatability：3%
- Indicator：Operating status: LED
- Insulation Resistance：≥50MΩ (500VDC) between power terminal and housing
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | TGF18-05NO2 |
| Working principle | Inductive sensor |
| Housing | Cylindrical |
| Installation type | Flush |
| Sensing distance | 5.0mm±10% |
| Thread size | M18 |
| Sensing Surface Material | PEEK |
| Detected objects | Metal sensor |
| Indicator | Operating status: LED |
| Sensing range adjustment | None |
| Switching output | Normally open |
| Output Mode | NPN |
| External input | None |
| Switching frequency | 0.5 kHz / 230 ℃ |
| Repeatability | 3% |
| Hysteresis | 3 ~ 15% |
| Operating Voltage | 10~30V DC±10% |
| Current Consumption | ≤25mA (24VDC) |
| Residual Voltage | 1.8 V or less |
| Load Current | 150mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Reverse polarity protection/surge protection |
| Operating temperature | -25~+230℃ |
| Operating humidity | 35~85% |
| Enclosure rating | IP66 |
| Connection type | 3m Teflon armored shielded wire /S12 connector |
| Dimension | M18x55.0mm |
| Material | Stainless Steel +PEEK |
| Weight | 0.08kg |
| Accessories | Nut M18x1.0 |
