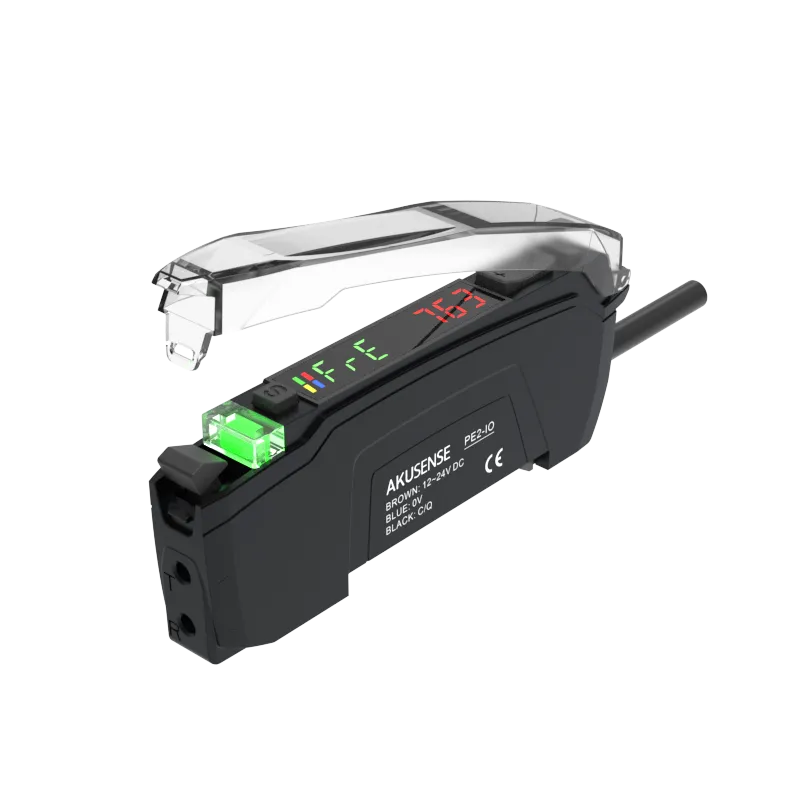

High Performance High Performance Fiber Amplifier
PE2
Selection
Selection
High Performance High Performance Fiber Amplifier
->
Models
PE2-IOWT2
PE2-IOWT
PE2-IO
Working principle
Optical fiber photoelectric sensor
Housing style
Slender block
Light Source
Red LED 660nm
Indicator lights
Operating status: Green LED, output status: red LED
Display Screen
Threshold setting value: 4-digit green LED: Current acquisition value: 4-digit red LED: 4 function indicators
Switching mode
Light.ON (light input action)/Dark.ON (light blocking action) switchable
Output Mode
IO-Link communication/NPN/PNP collector output switchable
Response Time
1-HS: 25us|2-FS: 50us|3-ST:250us; 4-LG:500us|5-PL:1000us|6S-SU:2000us | 7-UL:16000us
Switching frequency
32Hz~20000Hz
Operating Voltage
DC 12~24V +10%
Current Consumption
≤54mA
Residual Voltage
<1.5V
Load Current
≤100mA
Insulation Resistance
≥50MΩ/500VDC
Withstand Voltage
1000VAC,50/60Hz,1 minute
ProtectiOn Circuit
Reverse polarity protection/surge protection/short circuit protection
Delay Function
Can be set
Operating temperature
-20℃~+50℃ (no freezing)
Storage Temperature
-30~+70℃（无冻结）
-30~+70℃ (no freezing)
Operating humidity
35~85%RH (no condensation)
Storage Humidity
35~95%RH (no condensation)
Ambient Illumination
Incandescent lamp ≤10000Lux; Sunlight <30000Lux; Cold light LED lamp ≤3000Lux
Vibration Resistance
10~50Hz, dual amplitude 1.5mm, 2 hours each in X, Y and Z directions
Protection rating
IP50
Connection Method
M12/4-pin connector, 15mm pigtail
M8/3-pin connector, 15mm pigtail
2M/3 Core Cable
Dimensions
80.0x9.8x39.0mm
Material
PC
Weight
33g
27g
61g
Accessories
Mounting bracket
