Double Sheet Detection Sensor (MUD Series)
SZJCX
Models

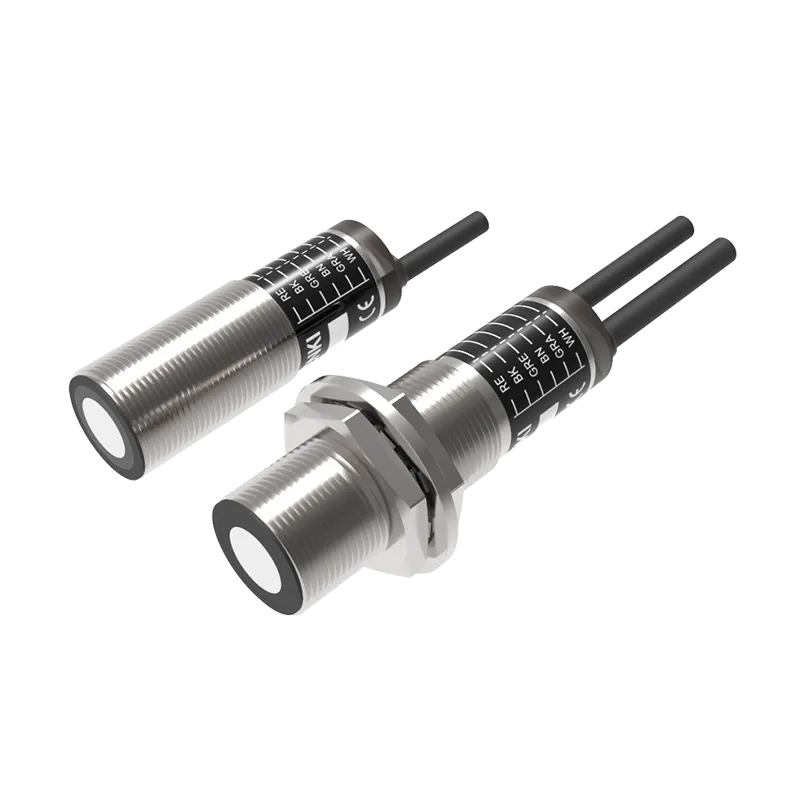

Double Sheet Detection Sensor MUD-60P-18-GL
- Detection Range：30~60mm
- Detection Method：Diffuse Reflection
- Output Mode：Three PNP
- Response Time ：15ms
- Connection Method：VC with six core cable, 2m
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | MUD-60P-18-GL |
| Operating Principle | Ultrasonic Detection |
| Enclosure Shape | Cylindrical (pair of sensors) |
| Detection Method | Diffuse Reflection |
| Detection Range | 30~60mm |
| Divergence Angle | ±45° |
| Refresh Rate | 1ms |
| Ultrasonic Frequency | 200kHz |
| Detection Range Adjustment | With calibration mode |
| Indicator light | Operating status: LED |
| Output Mode | Three PNP |
| Response Time | 15ms |
| Transducer frequency | 10Hz |
| Switching frequency | 20Hz |
| Operating Voltage | 18~30VDC |
| Operating current | ≤50mA |
| Load Current | ≤100mA |
| Maximum Ripple | Plus or minus 10% |
| Voltage Drop | < 2V |
| ProtectiOn Circuit | Short circuit protection/overload protection |
| Temperature Compensation | None |
| Working Temperature | -20~70℃ |
| Protect degree | IP65 |
| Connection Method | VC with six core cable, 2m |
| Dimensions | M18x79. 0 mm |
| Material | Nickel-copper plating |
| Weight | 0.17 kg |
| Accessories | Nut M18x1 |
