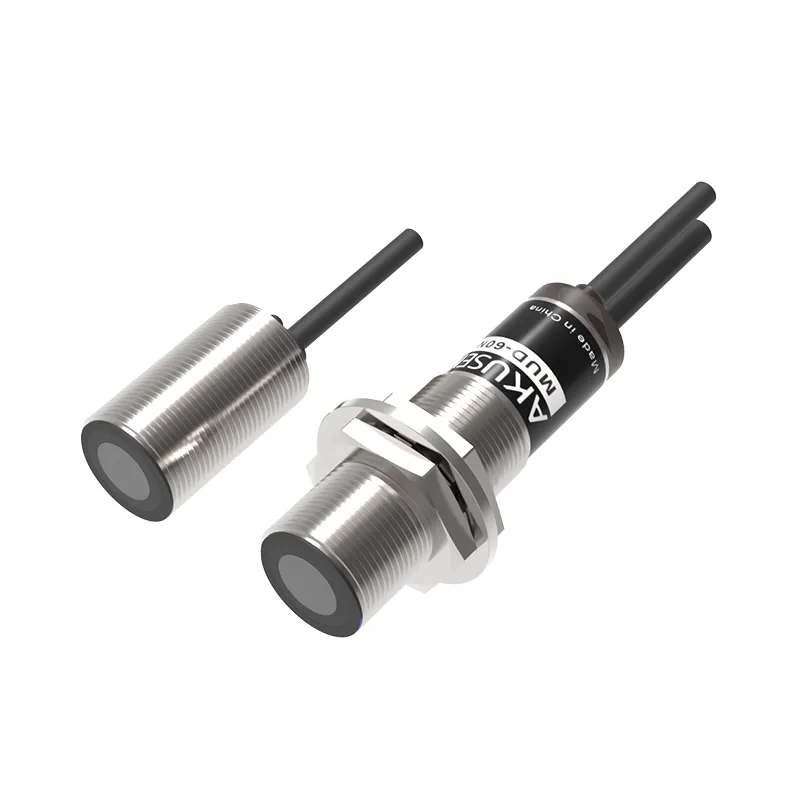

Double Sheet Detection Sensor MUD-60N-400
Double Sheet Detection Sensor MUD-60N-400
  • Detection Range：20~40mm best :20mm+2mm
  • Detection Method：Diffuse Reflection
  • Output Mode：NPN/ Output: lmax=200mA (-V+2V)
  • Response Time ：Auto run mode is 2.5ms
  • Connection Method：2m PUR cable
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
ModelMUD-60N-400
Operating PrincipleUltrasonic Detection
Enclosure ShapeCylindrical (pair of sensors)
Detection MethodDiffuse Reflection
Detection Range20~40mm best :20mm+2mm
Divergence Angle±45°
Ultrasonic Frequency400kHz
Indicator lightGreen light: single sheet, green light flashing: teaching, red light: double/multiple sheet, red light flashing: no paper
Output ModeNPN/ Output: lmax=200mA (-V+2V)
Response Time Auto run mode is 2.5ms
Switching frequency20Hz
Operating Voltage20~30VDC
Operating current≤50mA
Load Current≤200mA
Maximum RipplePlus or minus 10%
ProtectiOn CircuitReverse polarity protection/short circuit protection
Temperature CompensationNone
Working Temperature+5~+60℃
Protect degreeIP65
Connection Method2m PUR cable
DimensionsM18x1x60.0mm + M18x1x30.0mm
MaterialNickel-copper plating
Weight0.4 kg
AccessoriesPlastic nut M18x1
Hysteresis<750ms
Residual Voltage2V
