Code Reader (RCD Series)
ZNDMQ
Models

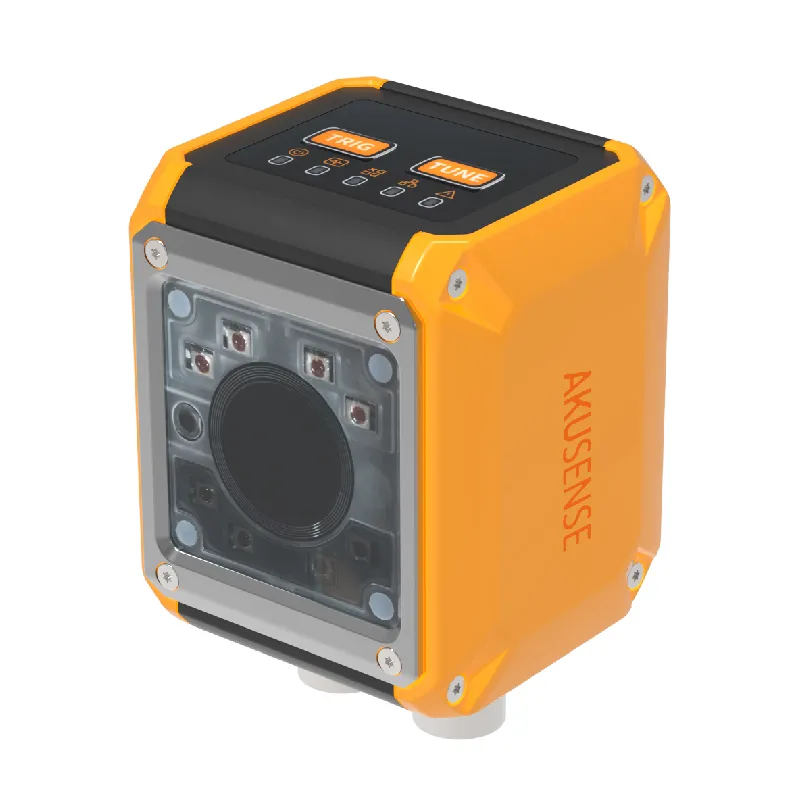

Code Reader RCD-AI100-X08WD
- Detection Range：100~1000mm
- Light Source：Polarized white light
- Connection Method：Cable connection
- Focal Length：8mm
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | RCD-AI100-X08WD |
| Working principle | CMOS |
| Enclosure type | Square |
| Detection Range | 100~1000mm |
| Field of View | Max. 480mmx300mm(@1000mm distance, 8mm focal length) |
| Focal Length | 8mm |
| Focus Adjustment Method | Mechanical focusing |
| Resolution | 1280×800 |
| Light Source | Polarized white light |
| Code Type | One dimensional code: Code39 Code93, Code128, EAN - 8, EAN 13, Interleaved 2 of 5, UPC, Pharmacode; QR code: QR code,DataMatrix |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | Location indication :1 green light point indicates the scanning location center area; Status indicator :5 status leds and buzzers |
| Image Sensor Size | 3μmx3μm |
| Target Surface Size | 1/4" |
| Maximum Reading Speed | 60 per second |
| Exposure Time | 20μs~1sec |
| Gain | 0dB~255dB |
| Operating Voltage | 24VDC |
| Power Consumption | 15W |
| Output type | Input control: two optocoupler isolated input, support NPN, PNP type; Output control: three-way output control, optocoupler isolation |
| Communication Protocol | TCP Server,TCP Client, ModBus TCP,ModBus RTU,Profinet, Ethernet/IP, Fins, MELSEC/SLMP,Seria |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20-70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 58x53.5x83mm |
| Weight | About 220g |
| Accessories | M12-12 Pin-3M (3M high flexibility) M12-8 Pin-3M (3M high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
