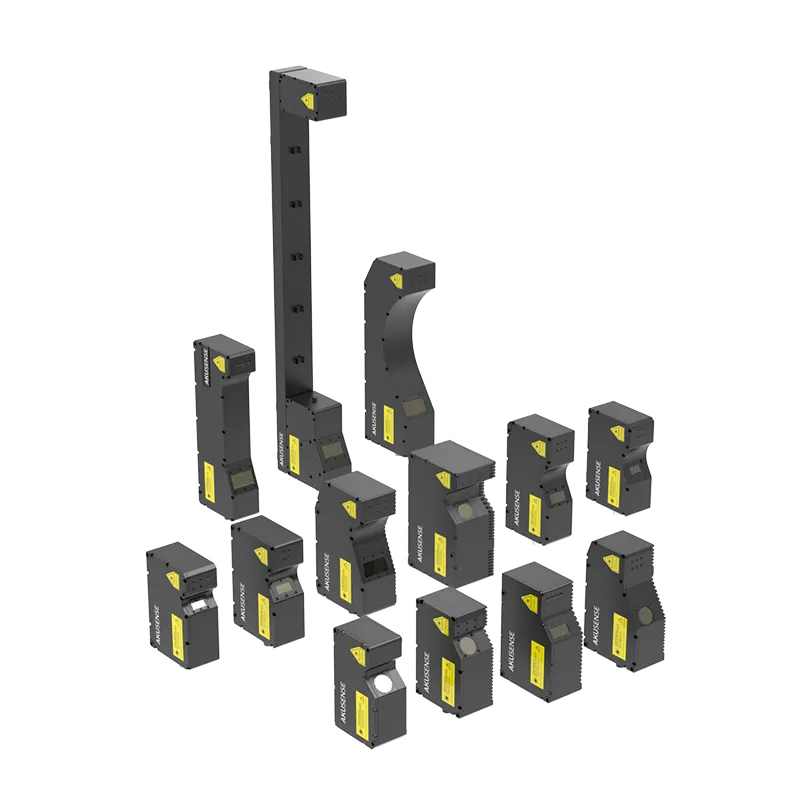

Line Laser Sensor(ESX Series)
Line Laser Sensor(ESX Series)
XJGX
SelectionModelsDownloadRequest a quote
Line Laser Sensor ESX-C200
Line Laser Sensor ESX-C200
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
ModelESX-C200
Working principleLaser 3D measurement displacement sensor
HousingRetangular
Optical working principleReflection
Mounting distance (CD)100mm
Z-axis Depth of Field (MR200mm
Near end FOV110mm
Reference distance170mm
Distal FOV230mm
Contour points2048
Light source wavelength405nm
Laser Class2M/3R
Laser output power10mW
Reflection Angle27 °
X directional resolution54.0~114.2μm
Z-axis repetition accuracy1.2μm
Linearity in Z direction (+/-% of MR)0.02%
Scanning Speed340~10000Hz
Operating Voltage24V DC±10%
Power Consumption11W
Communication InterfaceGigabit network interface, 24VTTL input 1, output 1, RS485 bidirectional IO 2
Operating temperature0~ 50℃
Ambient IlluminationIncandescent≤10000lux
Vibration Resistance10~55Hz, double amplitude 1.5mm, 2 hours each in X,Y, and Z directions
Shock ResistancePeak acceleration of 15g, duration of 11ms half-sine wave shock
Enclosure ratingIP67
Dimension185x100x54mm
Housing MaterialAluminum
Weight0.8 kg
